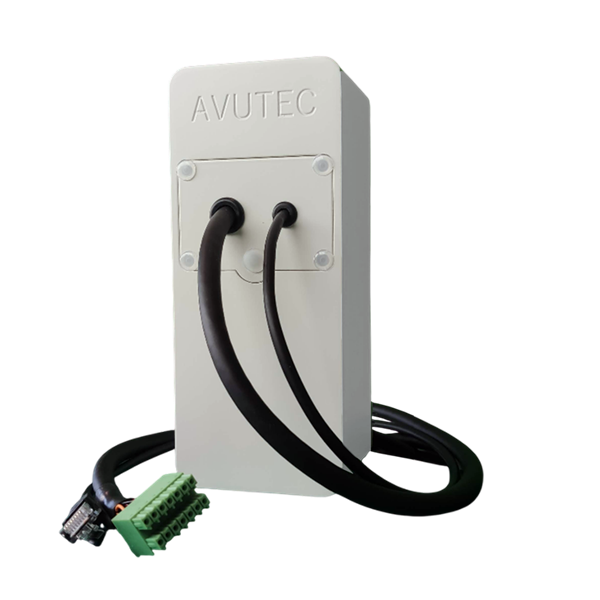

1.The Module-X comes with a pig tail
The Module-X has a pig tail of two cables to ease installation: a Cat5E UTP and a  multicore cable (14 cores), the feature cable.



2.PoE+ (IEEE 802.3at) with Cat5E UTP Cable
A Cat5E UTP Cable 100% copper or higher is required, with a maximum length of 50 meters.

Connect the UTP cable to a PoE+ IEEE802.3at switch (30 Watt per port), if connecting multiple Modules be sure that the PoE+ budget is sufficient.



3.Mount the camera

Click here when using a bracket Mod-brackets
Click here when using the MX_TERM_SL
Click here when using the MX_TERM_RVS
Click here when using the MX_TERM_KIT



4.I/O cable
The IO pins of the Module-X can be connected via the I/O cable.
The Module-X can be powered by providing 12 - 48 Volt DC on the I/O cable.

See:
I/O cable GK_MX3
I/O cable GK_MX4
I/O cable GK_MX5
