Proper positioning of the camera is crucial to ensure optimal performance.
The table below gives an indication of proper distances to mount a Module-X.
Keep in mind, that all circumstances are different. For the best recognition each installation must be examined with care.
Use the ANPR inspection tool to verify the position of the Module-X.
Mounting height |
80-100 cm above the floor |
Max horizontal recognition angle |
40 degrees |

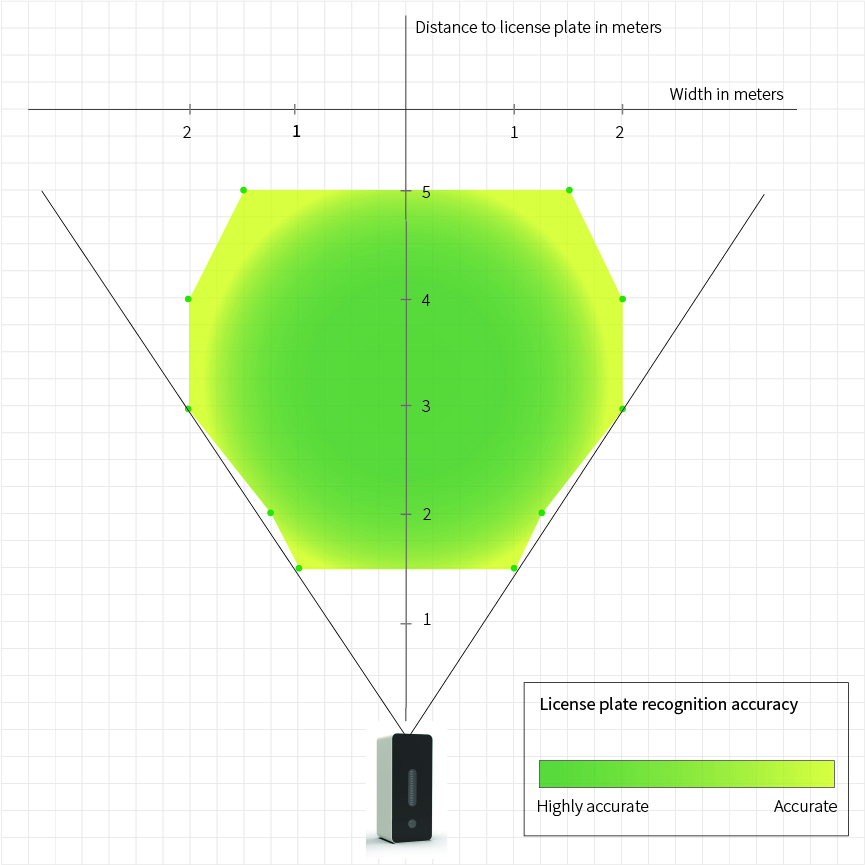

Recognition area |
•2-5 meters (standard) •custom recognition area on request |
Max lane width |
see range chart |
Built-in options |
The Module-X can be built-in in a terminal or parking unit. (see technical drawing for the measurements) |
Mounted stand alone |
•Videotec bracket compatibility •The AVUTEC Mod-brackets (see bracket compatibility) |
