The Module-X can be installed on either a wall or a pole using the AVUTEC Mod-brackets.

These brackets are made of durable stainless steel and designed to be both compact and versatile. Their multiple degrees of freedom allow the Module-X to be positioned precisely for the best viewing angle.



Brackets are NOT INCLUDED, but can be ordered.



The Mod-brackets



Wall mount [MX_BRW]

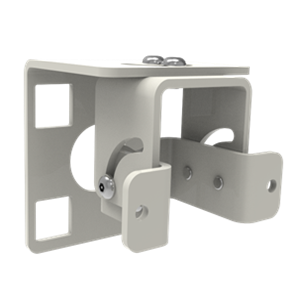

Pole Mount [MX_BRP]

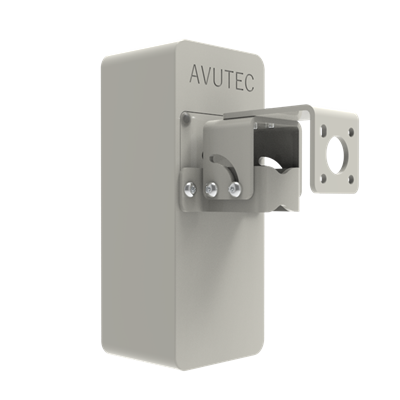

Installation of the Mod-bracket



In order to mount the Module-X with the most degrees of freedom, the mod-brackets must be fastened using the two lower M5 screw holes on the back of the Module-X.




The mod-bracket is mounted with safety fasteners, hex pin 3mm. They are included with the brackets.

The pole mount Mod-bracket can be mounted using pole clamps for a pole with a diameter starting at 90 mm. Pole clamps are not included
