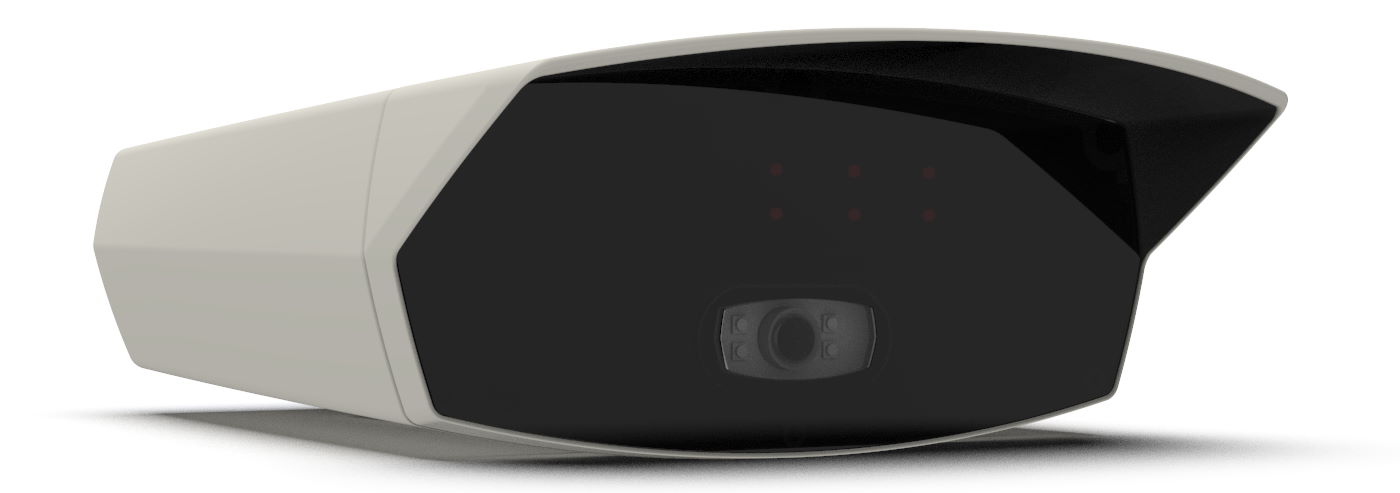

The Gatekeeper-X

A Gatekeeper-X is a embedded visual sensor system dedicated to automatic number plate recognition (ANPR), image analysis tasks, and all functionality implemented in CortexFramework, the AVUTEC camera OS and computer vision integration platform.

The Gatekeeper-X contains both an IR sensitive sensor and a HD color camera for recognition in all circumstances. Sensor synchronized LED illumination is built in.

With its 2 to 30 meter viewing range, wide recognition angles and high frame rates, the Gatekeeper-X can be used in solutions ranging from access control, toll collection, law enforcement, logistics to car wash venues. Security can be automated and convenience can be offered to end users.
The integrated junction box guarantees easy installation with only one cable for both power and network connection through PoE+.

•GUID
Each Gatekeeper-X is given a GUID, a unique serial number, to identify the device. The GUID can be found on the box and in the junctionbox at the back of each Gatekeeper-X. The Guid is used in CortexClient, the client used for management, monitoring and configuration and during support. In CortexClient or other AVUTEC documentation a Gatekeeper is referred to as hypervisor.

Key features

1.All processing units (CPU and GPU) are embedded. No extra processing device required.

2.Remote configuration with CortexClient.

3.Integrated junction box for easy installation.

4.Only one cable(PoE+, IEEE802.3at) needed for both power and Ethernet

5.Motorized zoom lens for flexible positioning

6.Configurable I/O outputs

7.Integrated Wiegand interface, I/O extender

8.CortexFramework pre-installed.

9.Embedded video recording.

10.Vandal proof through smart cable management.

11.Waterproof housing (IP67).
