NXAxon interfaces with the Nx Witness VMS of Nx Optics.
Nx Witness VMS is an open IP video management system(IPVMS) designed to find, view, record, and manage IP video cameras as well as integrate quickly with 3rd party systems and devices.
With NxAxon conditions can be set to bookmark events in this video management system.

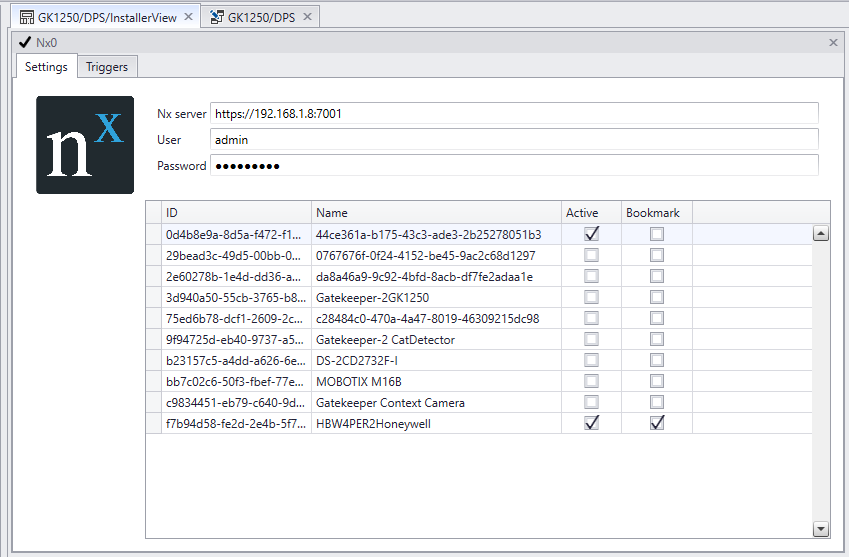

Settingstab |
|
Setting |
Description |
Nx server |
IP adress of the NX server plus port |
User |
Fill in the username |
Password |
Fill in the password |
The list |
The list seen in the panel is generated automatically. Nothing can be changed here except for the column bookmark. When checked a bookmark is set for the corresponding camera.
The list displays all camera's connected to the NX server. Active is checked when NX server is recording the stream.
Bookmarks are specified in the Triggers panel of the NXAxon. Bookmarks with the same trigger can be set for multiple camera's. Using the recognized license plate to trigger a bookmark, can also bookmark any other stream. |
Scripting tab: triggers and actions |
In NXAxon bookmarks can be made by setting the condition(trigger) to invoke an action (the bookmark).
|

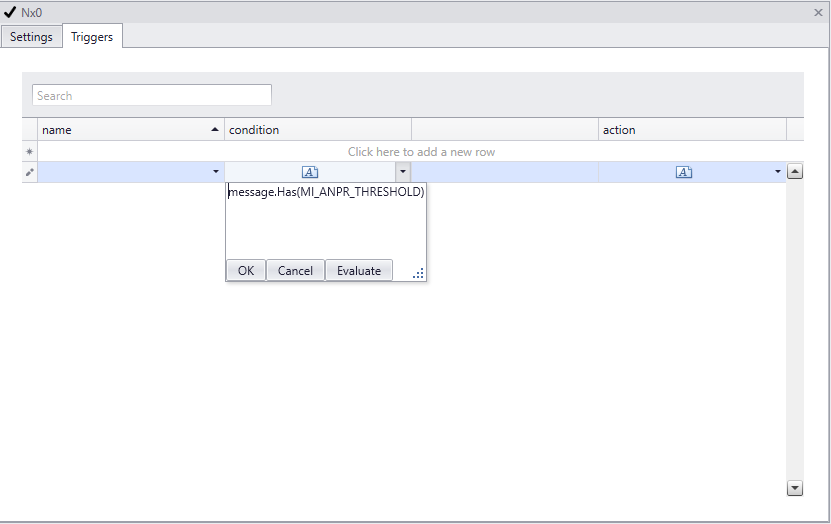

Triggers panel with condition set to message.Has(MI_ANPR_THRESHOLD) |

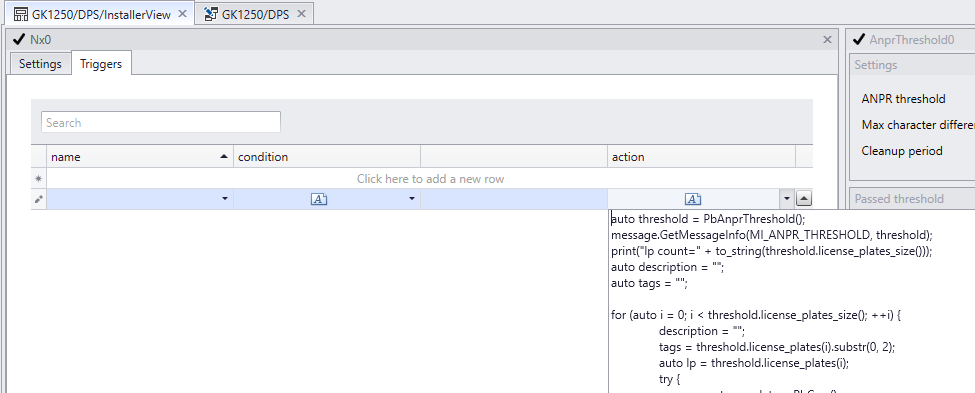

The action triggered by the condition is scripted |
|
|
