In the 'triggers' tab a script can be implemented to:
1.Trigger specific functionality on a predefined event.
2.Implement custom Wiegand formats.
3.Connect with a database to retrieve a corresponding id of a license plate, hash the id and send out a Wiegand signal to an access control system.
For more scripting examples or take a look at the Framework manual.
For more information and custom made scripts contact our support team at [email protected].

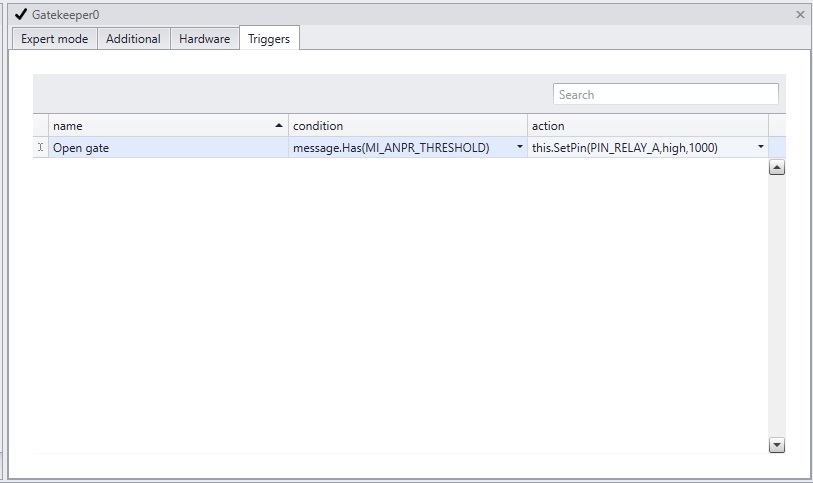

Example of scritpting opening a barrier |
|
|
Name: Set the name of the trigger. In the example the name is 'Open gate' to describe the functionality.
Condition: The condition, that has to be met before executing the 'action'. In the example the condition is reached when the number recognitions of a license plate has reached the threshold.
Action: The action performed when the condition is met. In the example relay pin 1 will be set high for 1 second.
In the additional tab Wiegand mode has to be set to None in order to execute triggers. |
