As of the GK_410X4 and GK_1250X4 this is no longer reguired



To maintain optimal license plate recognition in various lighting and weather conditions we strongly recommend using sequencing.

Sequencing divides the video stream in two separately adjustable streams. For both image streams the exposure and gain can be set independently.

Iris behavior is set for the bright sequence, normally sequence 1 and will automatically work for sequence 2.



By doing so, a sequence for bright lighting conditions can be set and a sequence for nightly recognition.

Sequencing is only used outdoors. Indoor the lighting conditions can be controlled and do not vary.



Optimal sequencing is achieved by setting exposure and gain in the IDSAxon/IDSPeakAxon. In the GatekeeperAxon iris and LED need to be configured.

One sequence should be optimised for bright circumstances. The second for dark conditions. To get the best results the first sequence must be configured on a bright sunny moment; The dark sequence before sunset or after sunrise. To start with we will hand you the default settings.



1.Exposure
the amount of light reaching the sensor effects the overall brightness and sharpness of the image. It is controlled by shutterspeed and aperture. In other words duration and the size of the opening to the sensor. It is like the pupil of an eye. In the darkness the lens needs to be more open then during the day.

2.Gain
Gain changes ISO values thereby adjusting the sensor’s sensitivity to light

3.Iris:
The iris is the mechanical part of the lens that opens and closes to control the amount of light reaching the sensor.





IDSAxon/IDSPeakAxon



CC_IDSAXON_2_Sequences_2



These settings are set per sequence.



1.Set the number of sequences to two. The sliding windows for gain and exposure will appear.



2.Set exposure and gain to the recommended starting values like below.


Sequence 1

bright conditions

Sequence 2

dark  conditions

Exposure

0.5

1.5

Gain

10

50





Images of both sequences are displayed. Sequence 2 is overexposed. This we will handle in the next step.







GatekeeperAxon

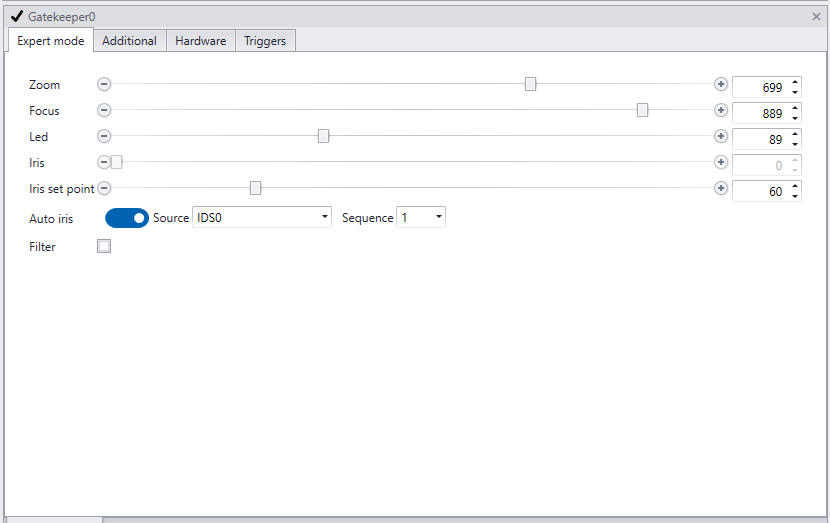

GK_Sequencing_GatekeeperAxon

These settings are set for both sequences in the same time.



1.Set value of Iris set point to 60
The iris setpoint is the average pixel value of the selected image source. It controls the overall brightness of the image. The iris of the lens, when set to auto iris, will constantly adjust to keep the average pixel value to this level, maintaining the same quality stream ready for ANPR.


2.Enable Auto iris
Enable 'auto iris' by setting the blue slide to the right. The iris will constantly adjust to maintain consistency of the video stream aiming for the Iris set point value.



3.Set Source to the IDSAxon (in the example the default name is used: IDS0)



4.Set Sequence to 1 (the sequence for bright lighting conditions)
By coupling sequence 1 to the iris settings, The image of sequence 1 is used to reach the value of Iris set point. Changing to sequence 2 will overly darken the bright sequence until the point the sequence is too dark for detection.



5.Set the LED value
LED values are set according to distance to the license plate. The further the license plate the brighter the LED. Default value is 200.
With an average pixel value of 60 the image will look quite dark. But with IR LED illumination reflecting on the license plates back to the sensor, recognition works best with a dark environment eliminating distraction.



Sequence 1

bright conditions

Sequence 2

dark  conditions

Iris set point*

60

60

Auto iris

on

on

LED

depending on distance to license plate

depending on distance to license plate





*The iris setpoint is the average pixel value of the selected image source. It controls the overall brightness of the image. The iris of the lens, when set to auto iris, will constantly adjust to keep the average pixel value to this level, maintaining the same quality stream ready for ANPR.

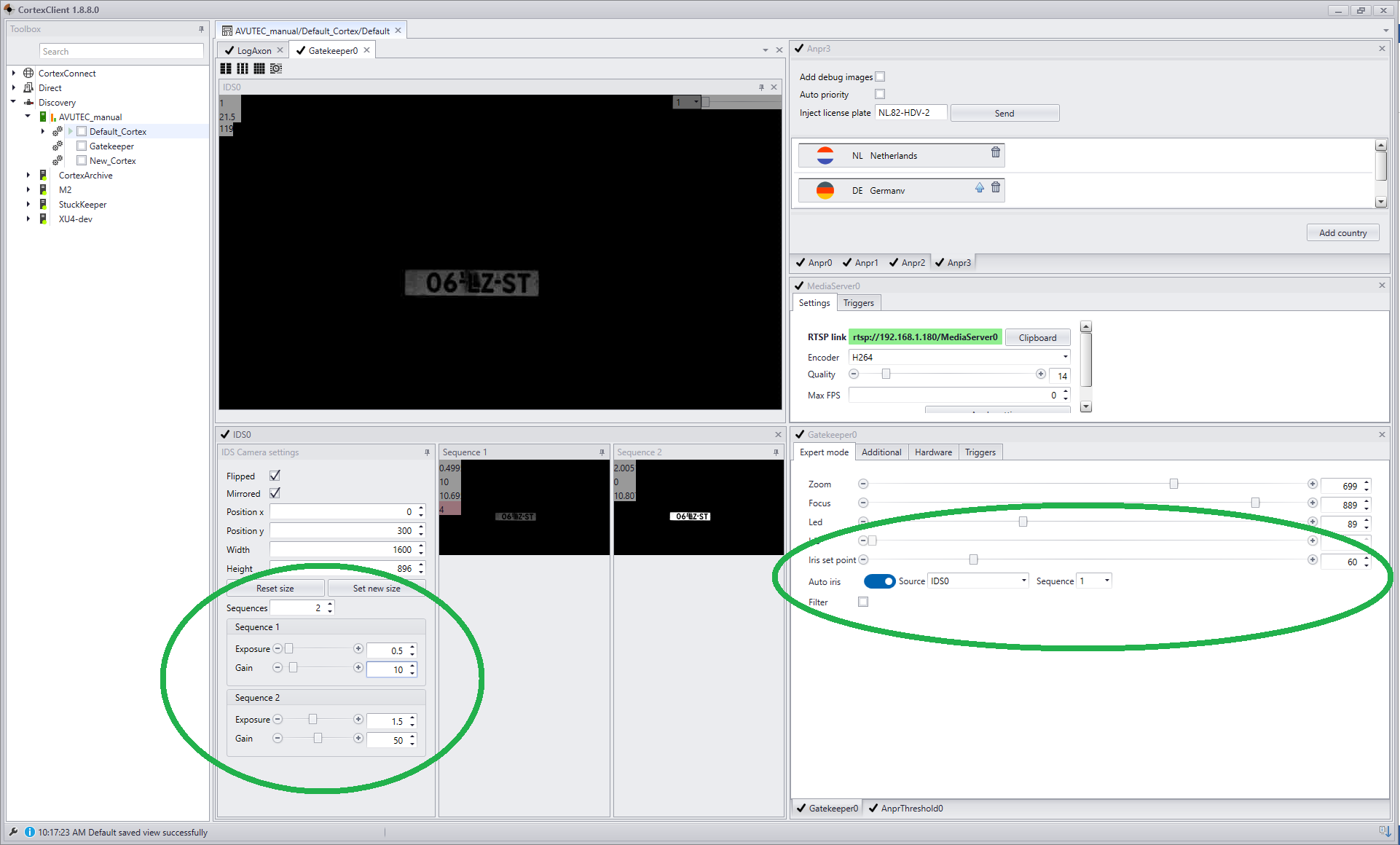

Overview in CortexClient of the default sequencing settings



GK_Sequencing
