Axon responsible to select a part of an image used in for instance two lane recognition.
The Axon does not change the settings of a sensor itself. It crops the images coming from the stream from the sensors.
In case of multiple regions of interest in one image and multiple cropped areas are required, multiple ImgCropAxons are needed in a Cortex. One ImgCropAxon can make one crop
Settings and view panel in one |
|
An image can be cropped by holding the left mouse button and drag and select the region of interest.
The cropped part of the image will be displayed on its original image position. It will not be resized to fill the panel. This way the exact crop can be seen. A new selection can be made without resetting to its original size.
The ImgCropAxon can only be used for uncompressed images.
|
|

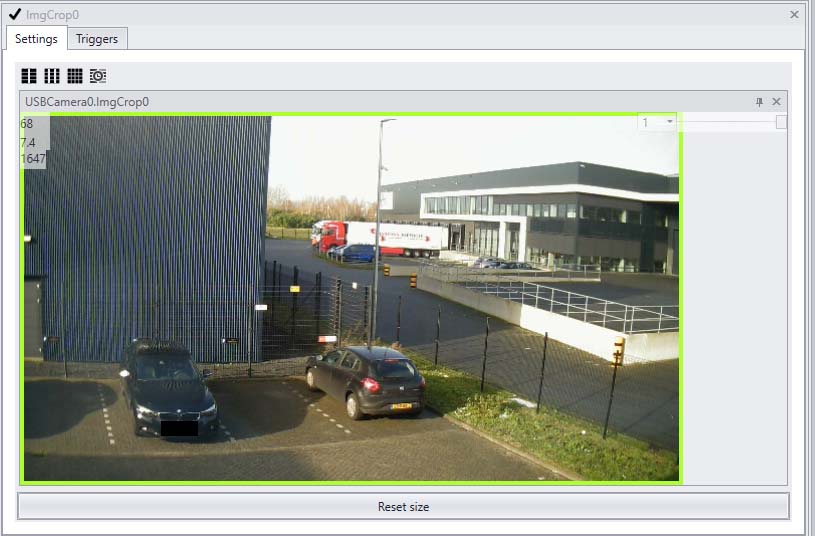

Original image |

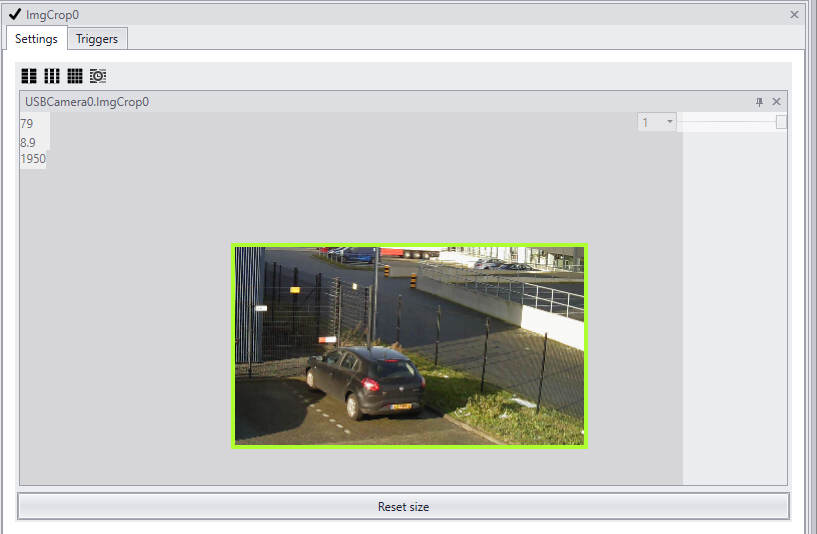

Cropped image |
|
|
